Vapor exhaust fan

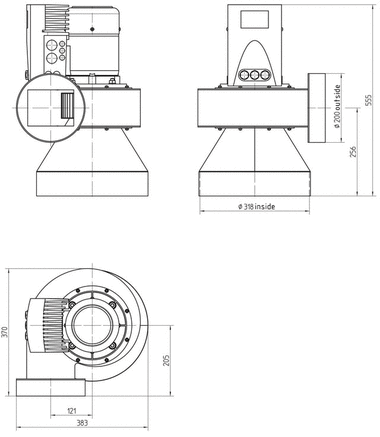

Dimensional sheet
Technical Data
| Flow rate | will be approximately 500 m³/h |
| Back pressure | max. 1.140 Pa |
| Motor rated power | 1,1 kW |
| Nominal voltage | 400 V |
| Nominal current | 2,5 A |
| Nominal rotation speed | 2.780 r/min |
| Frequency | 50 Hz |
| Protection system | IP 55 |
| Noise pressure nevel | 84 dB (A) |
| weight | approx. 28 kg |
